CHIRP+ 4, powered by expert-trained AI, helps distinguish fish from sonar noise. This reduces guesswork, especially in situations where interpreting sonar readings can be challenging.

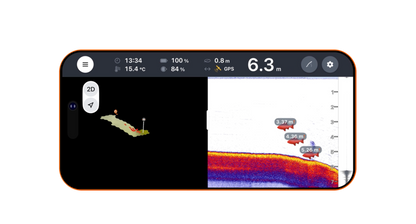

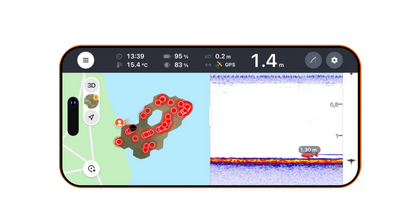

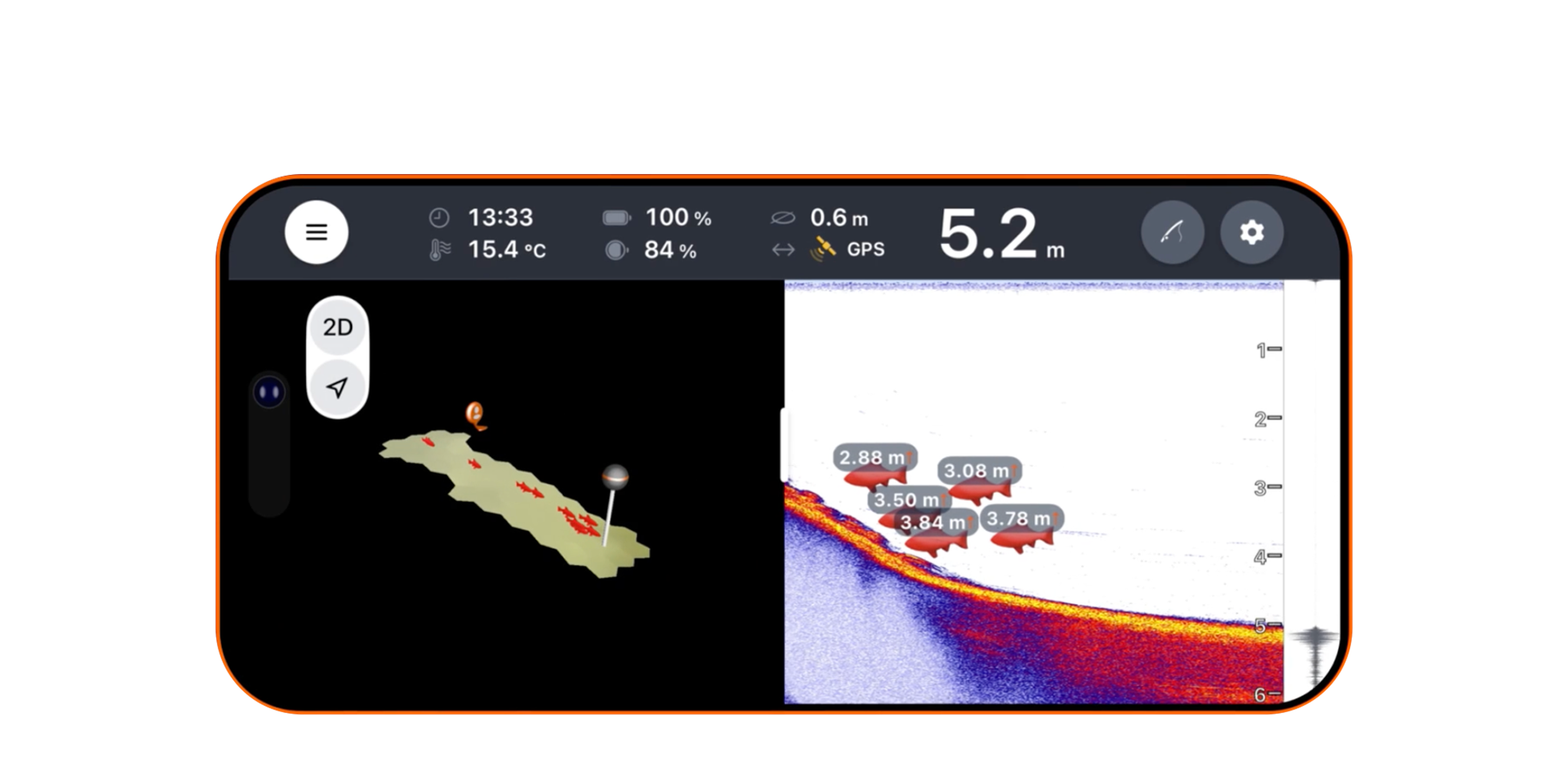

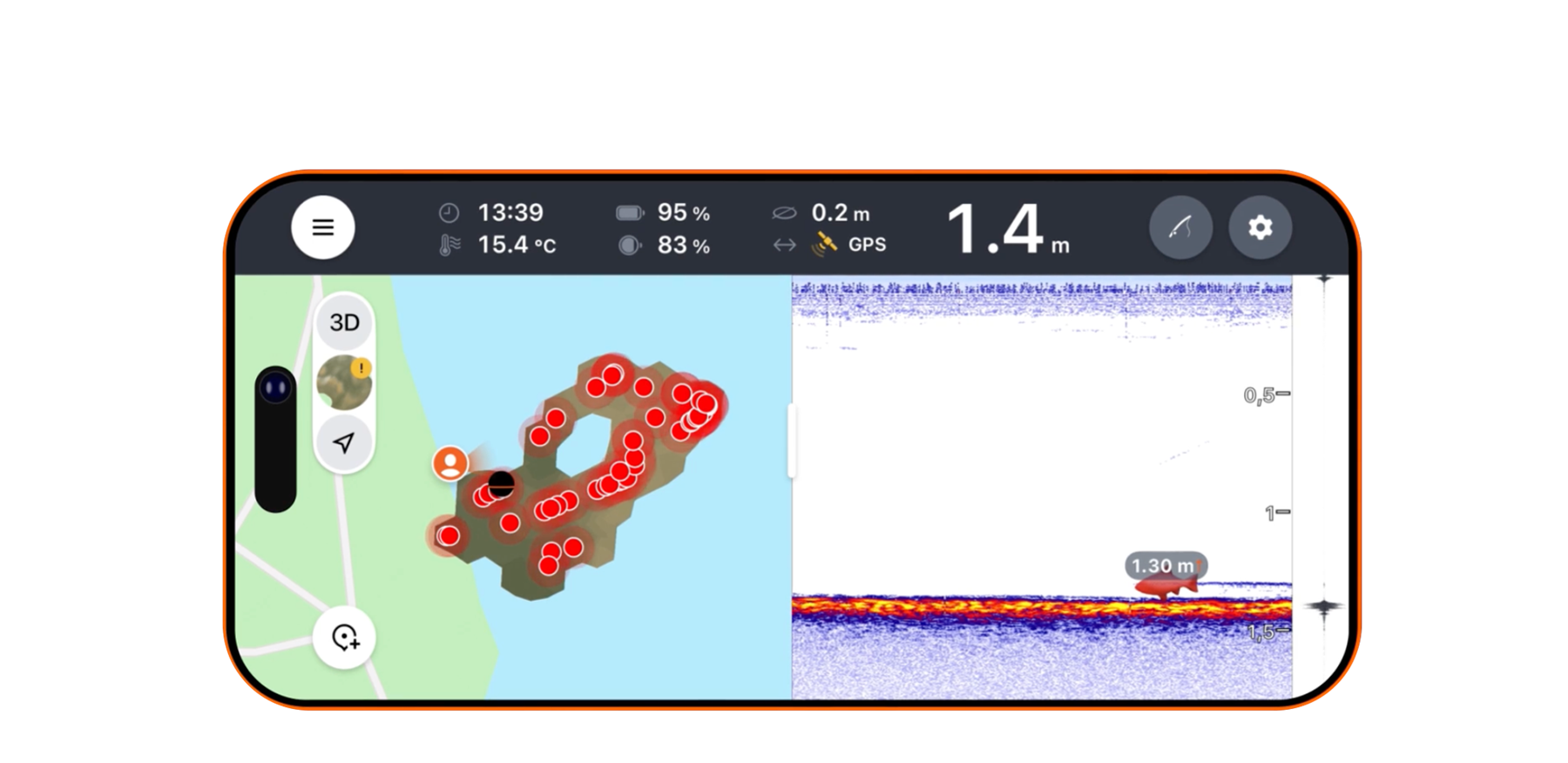

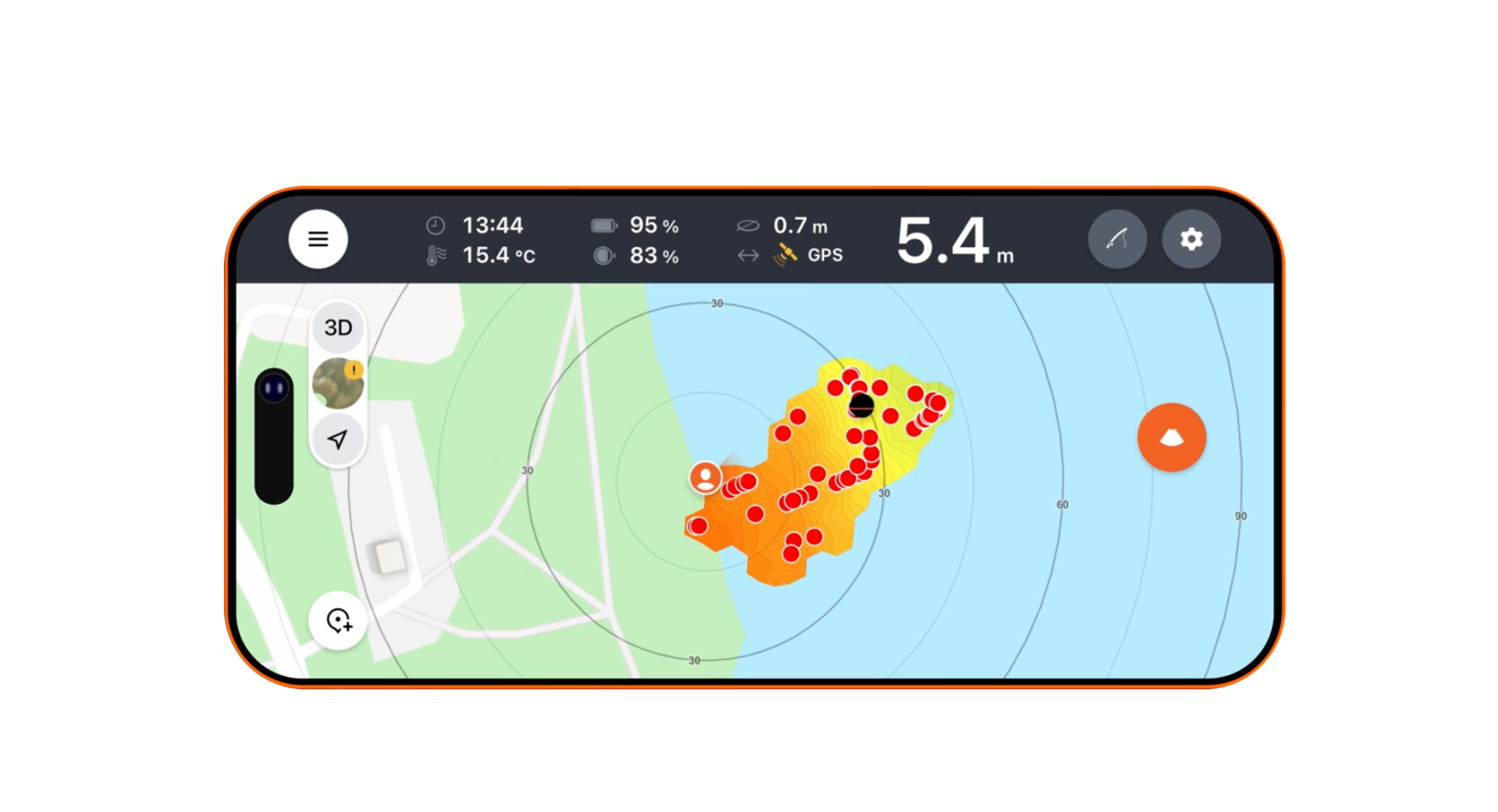

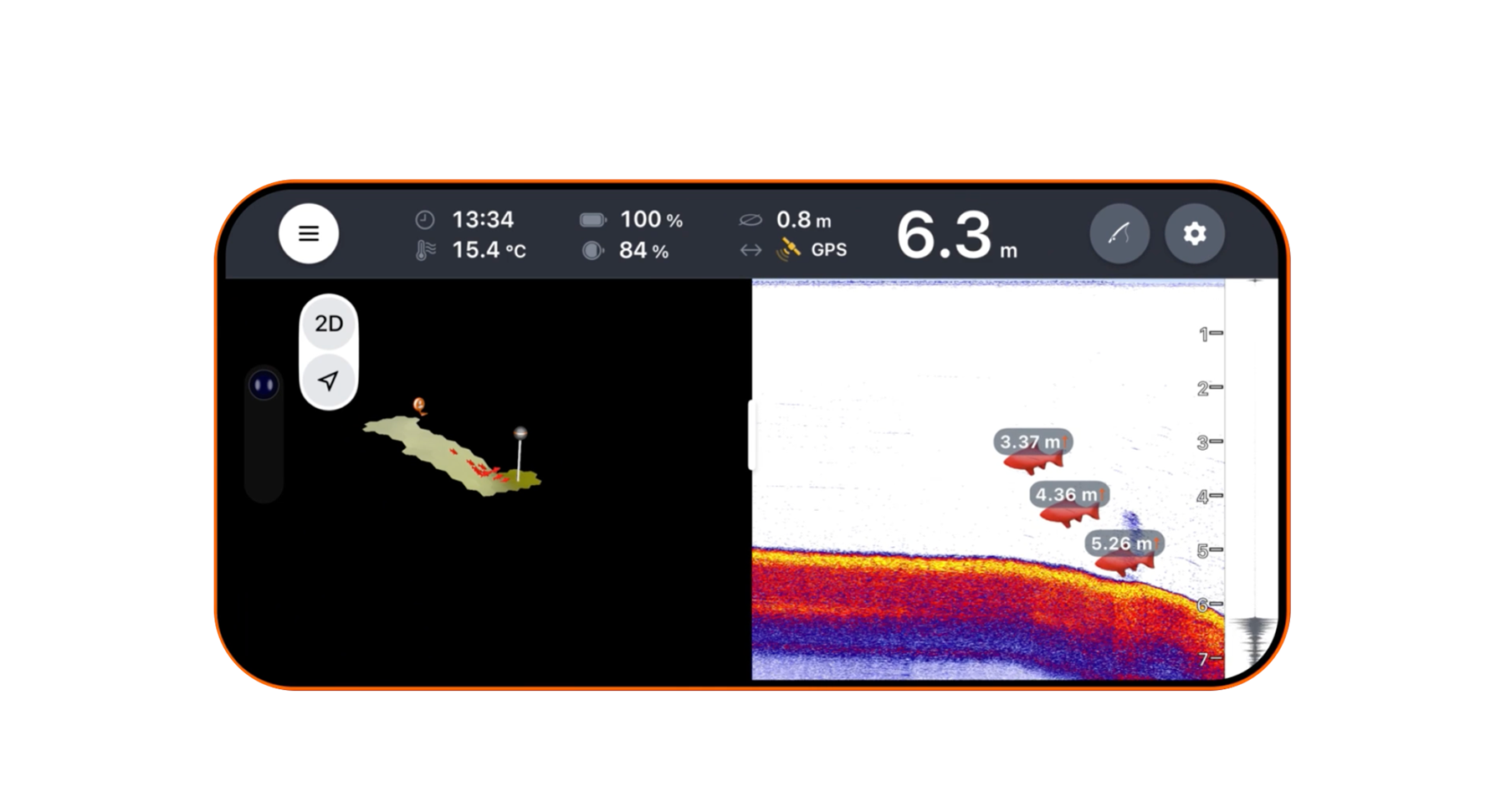

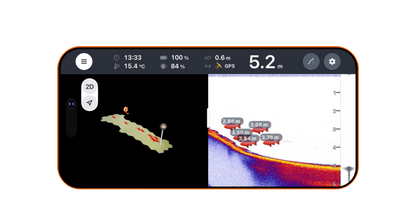

AI Fish Detection – Automatically identify fish in your sonar readings and view them on your personal 3D maps, reducing the need to interpret raw sonar data.
Key Features-Benefits

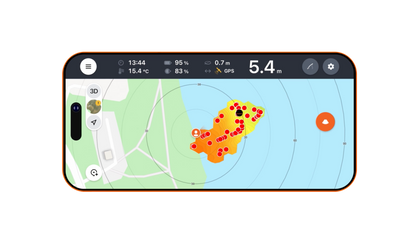

Bottom Structure & Vegetation – Discover bottom structure and vegetation built from your own precise sonar data and locate the most productive fishing spots.Personal Vegetation and Bottom Hardness Maps available in both 2D and 3D.
Triple Beam System – Choose between 3 beam widths and explore the bottom structure in rarely seen clarity with whichever option suits your needs.

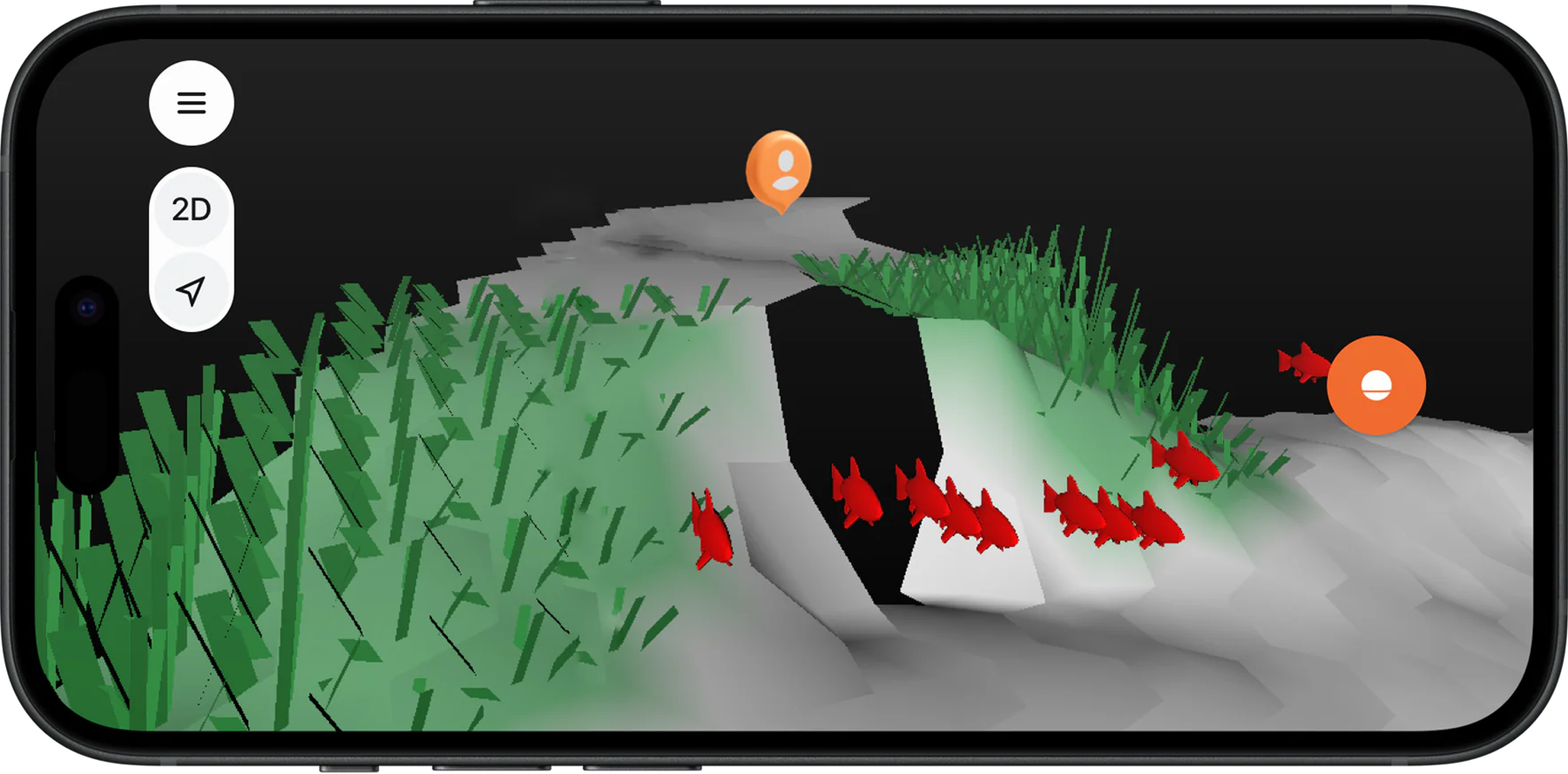

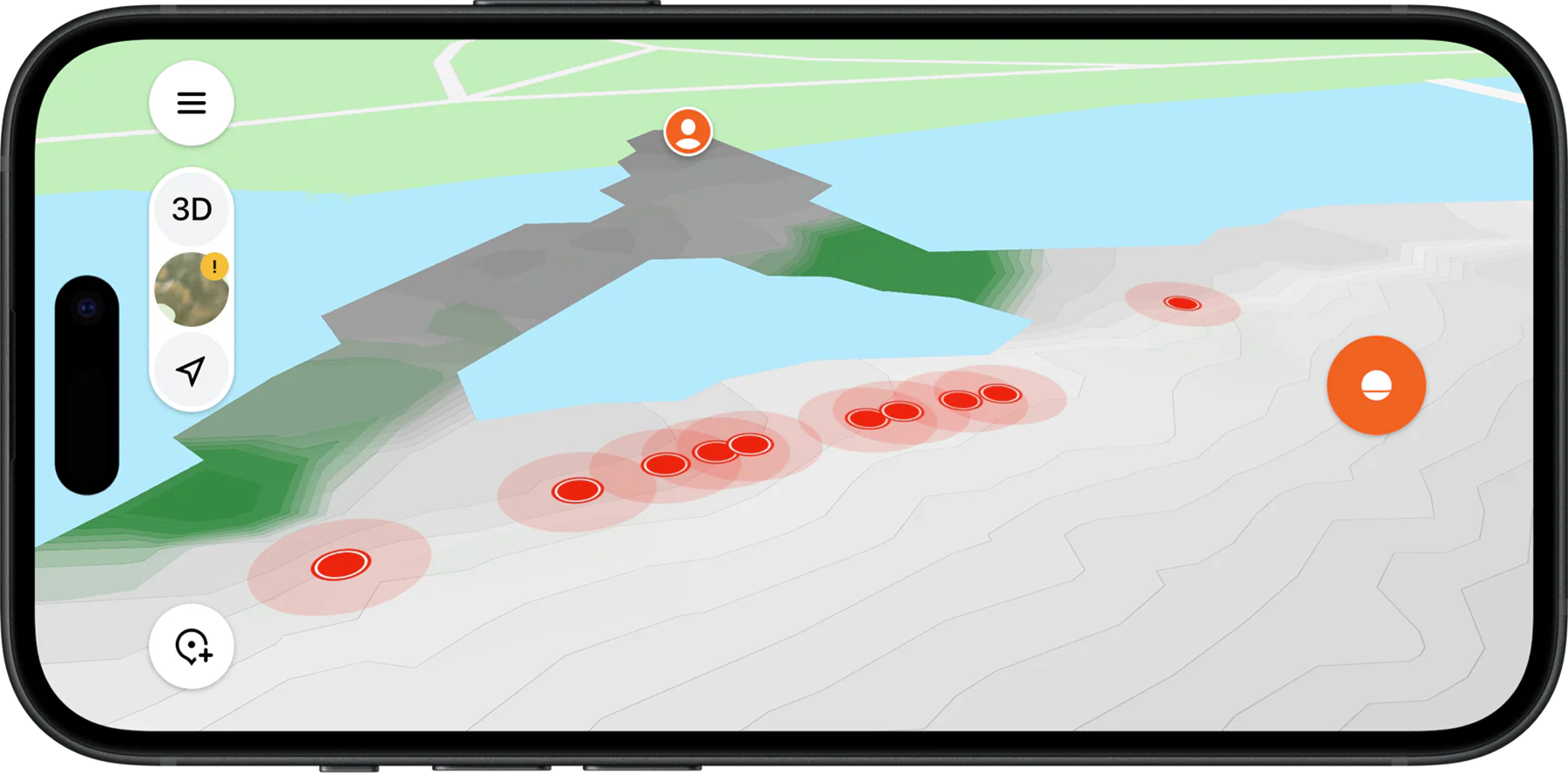

3D Clarity – View bottom features like structure, depth, hills, and slopes in 3D with exceptional clarity.
Tech Specs

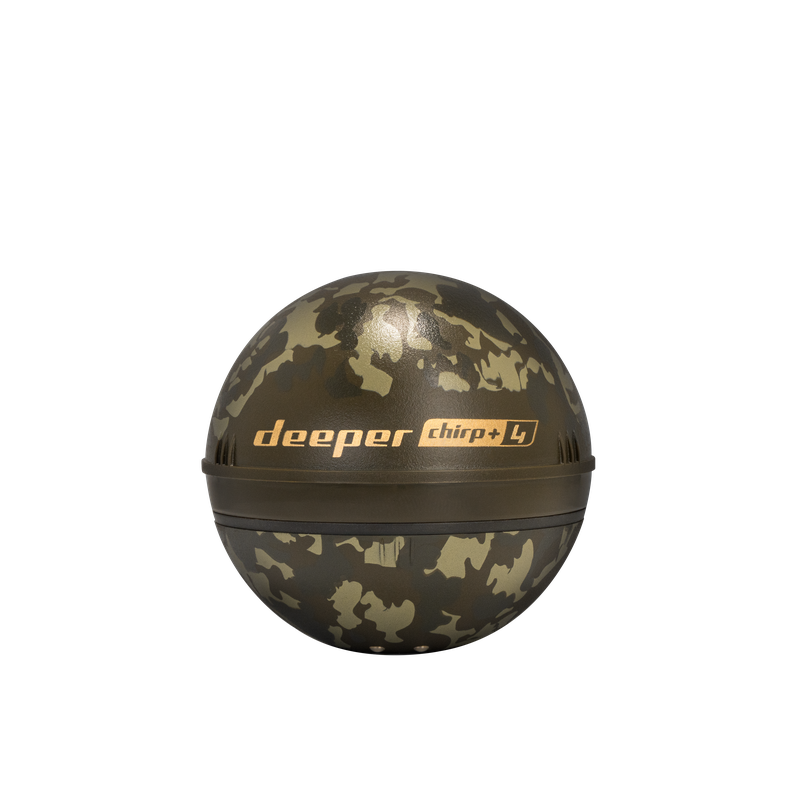

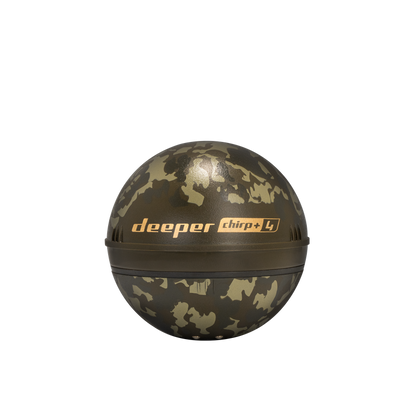

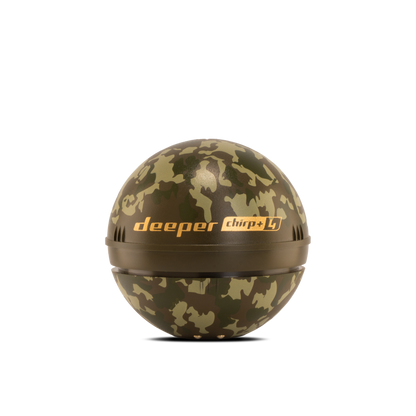

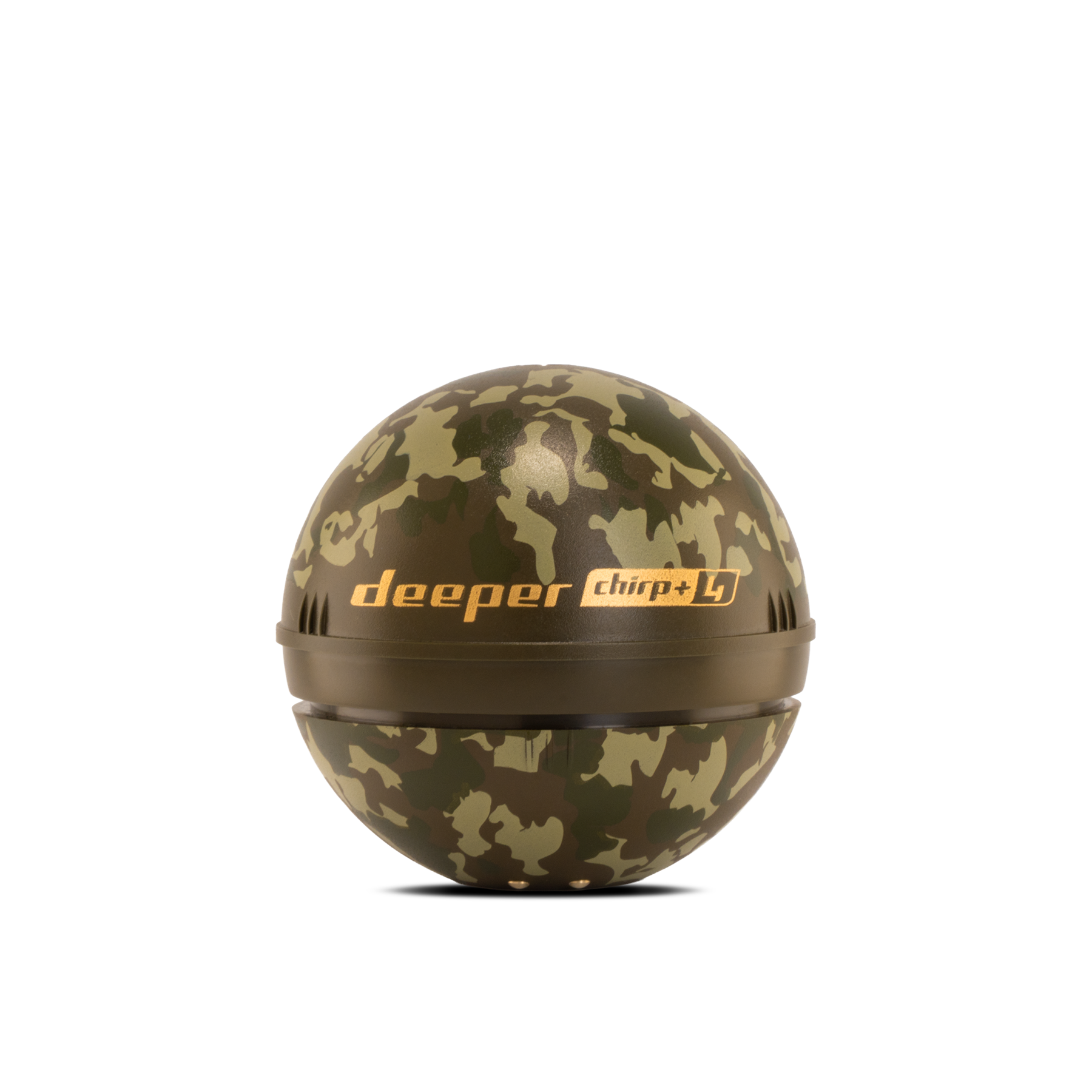

Name: Deeper CHIRP+ 4
Model: DP7H3ISIO
Internal code: FNG007I
Material: ABS
SonarType: 3 beam
Frequency (Beam Cone): 100 kHz, 47°; 240 kHz, 20°; 675 kHz, 7°
Depth Range Max/Min: Max 330 ft / 100 m, Min 0.5 ft / 0.15 m
Sonar Scan Rate: 15 scans per second
Operating Temperature: -20°C to 40°C / -4°F to 104°F
Internal Battery: Lithium-ion polymer, 3.8V Rechargeable, 1300mAh (typical)
Power Supply Input: 5V DC, 1.5 A Max, Input AC 110V/240V Output USB C
Connection Range: 394 ft / 120 m (depends on OS and smartphone model)
Color: Brown Green
GNSS: GPS, GLONASS, Galileo, BeiDou, QZSS
Product Size: 2.55 in / 6.5 cm
Product Weight: 3.3 oz / 94 g
Country Of Origin: Lithuania
Connection Type: Wireless Wi-Fi connection, 802.11 b/g 2.4GHz channel (max TX power +20dBm), 802.11 g (max TX power +18dBm, RX sensitivity -76dBm)

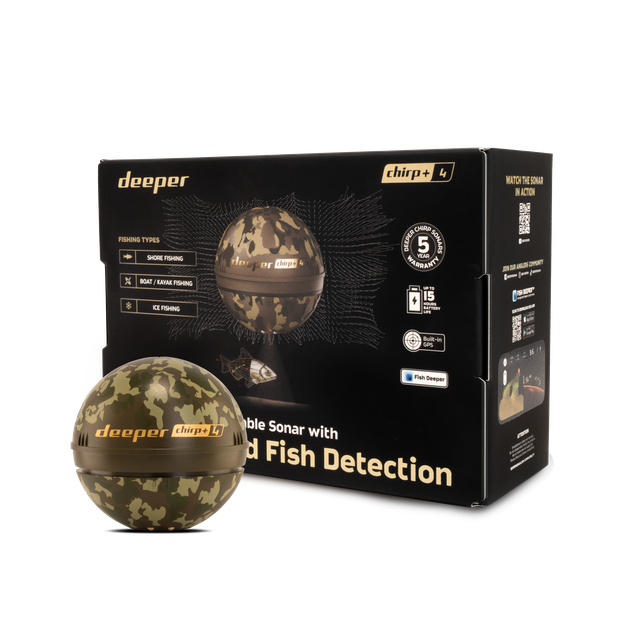

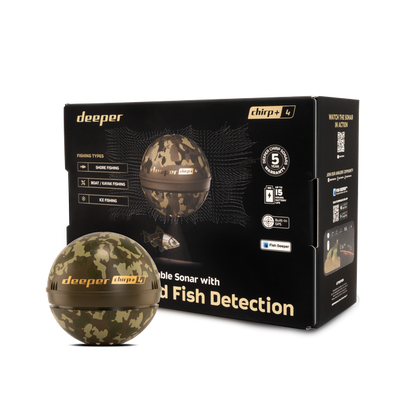

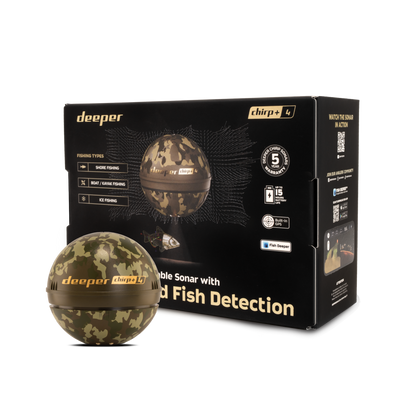

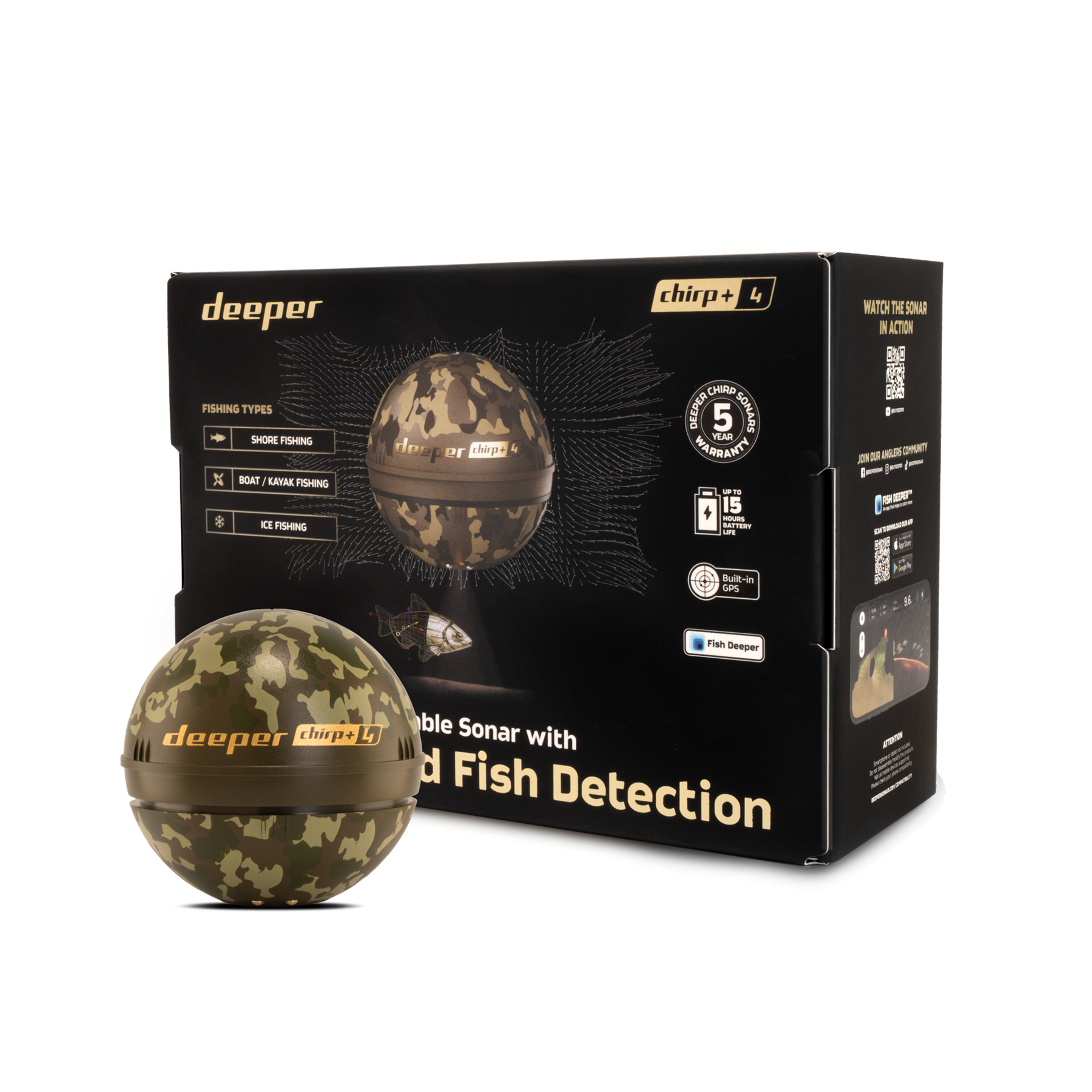

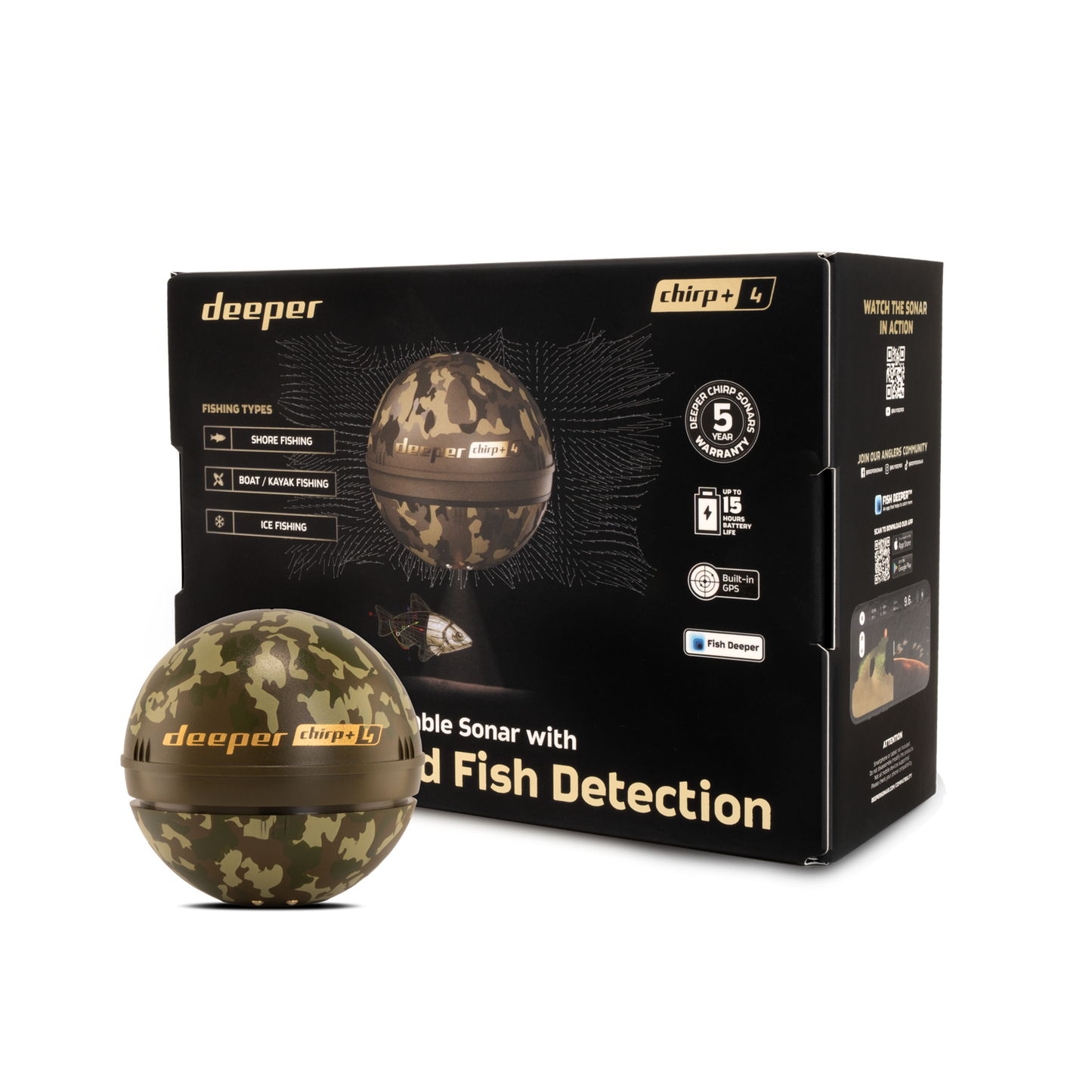

What's in the box
Sonar (the CHIRP+ 4 unit itself)

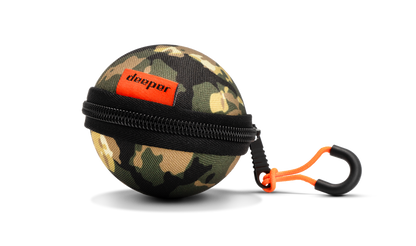

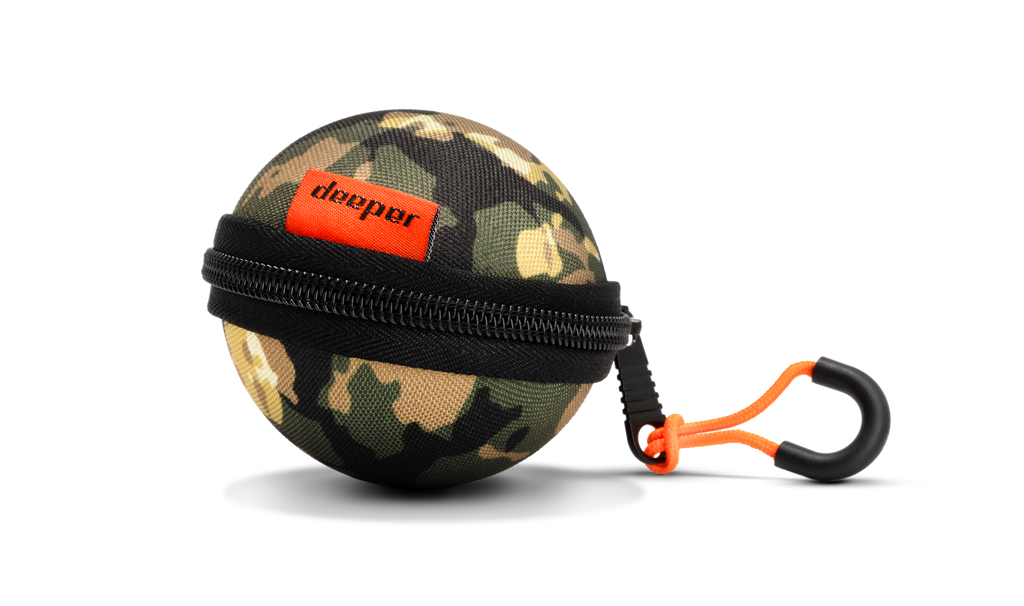

Hard carrying case

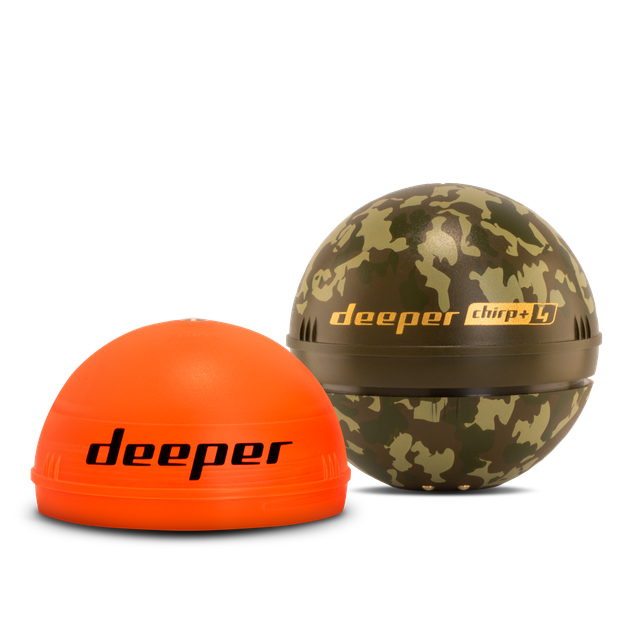

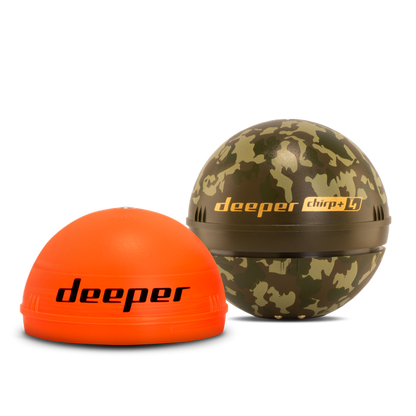

Night fishing cover/cap
Charging cable (USB-C)
Attachment bolts
